View towards fireplace of the beautiful glu-lam beams. Glass will fill the areas now covered by plastic.

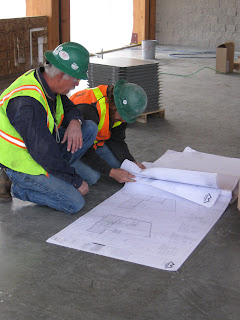

Jack Stuart, the project manager, left, and another Jaynes builder going over the plans.
Bob Wilson, Board President, and Patsy Smith, Director, on the building tour.

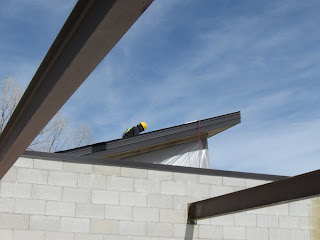

View of the Sustainability Tower from the Meeting Room roof.
The HVAC, installed and under wraps.

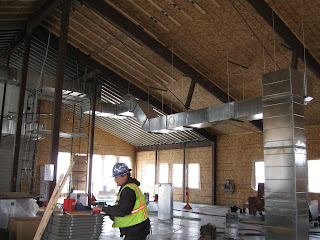

Interior Ductwork - this central line originates from the rooftop HVAC, and disappears to the plenum under the floor. From there, warm and cool air will circulate through the building via the sub-floor duct system.
This tangential duct originates from the Transpired Solar Collector Wall, located on the south side of the building. During the winter months, accumulated heat will travel from the Collector Wall to the HVAC system, reducing the workload of the heating system. This results in lower energy useage.
Construction site humor.
The new library features a raised flooring system, with an open air 'plenum' underneath. The floor is supported by a framework of vertical pedestals; the 2' x 2' metal and concrete floor tiles are laid into place and secured by screws.
There are many benefits to having a raised floor, including the creation of a 'crawl space' type area for re-routing electrical wires and cabling. This ensures ease of building expansion - down the road, if we need to install a new electrical outlet or a new computer - the wires can be placed with a minimum of hassle.
Another benefit is the way the plenum works with our Heating/Ventilation/Air Conditioning unit (HVAC). All of the ductwork attached to the HVAC will funnel the air directly to vents located in the floor, thereby heating and cooling people the closest to where they are - near the floor.
